Technology is introduced
A, zinc, silver is silver oxide battery as the anode, a cathode zinc, has zinc oxide saturated potassium hydroxide solution for alkaline battery electrolyte. It has small volume, light weight, large capacity, high than energy and power, small self-discharge loss, stable discharge voltage, etc.
Second, the series of battery is suitable for the start of the military equipment, unmanned aerial vehicles (uavs) and other equipment power, aviation for navigation, special lighting, communications, precision instruments and meters and telemetry equipment such as dc power.

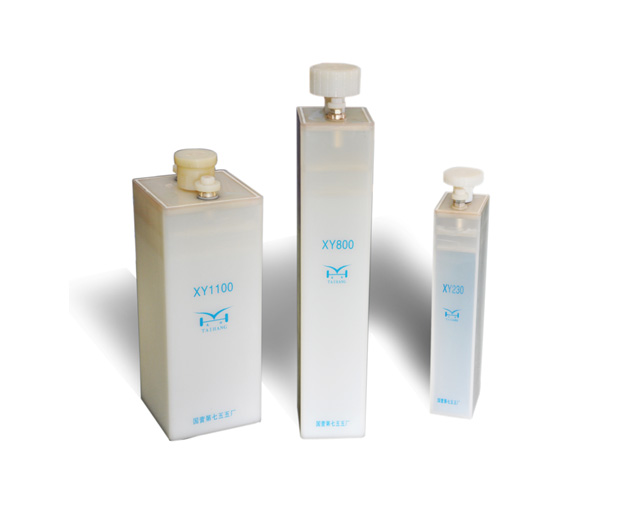

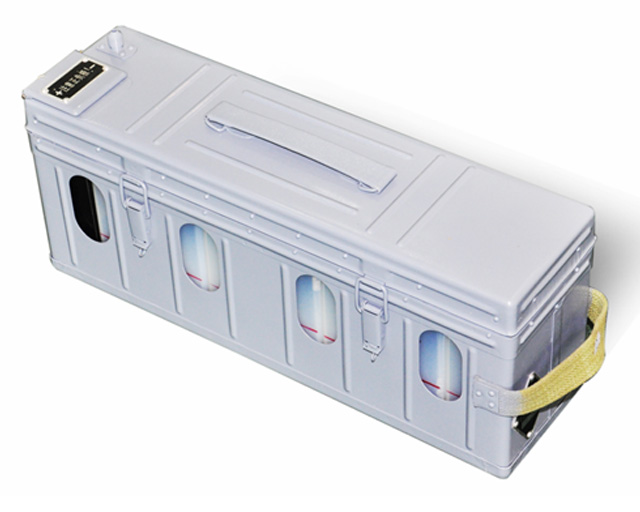

Product specification：
型号 Models | 额定容量 Rated Capacity （Ah） | 额定电压 Nominal Voltage (V) | 最大外形尺寸 Dimension（mm） | 最大重量Weight （kg） | 电液量Electrolyte Volume （mL） | 极柱螺纹 | 壳体材料 | 国外型号 | ||
长（L） | 宽(W) | 高(H) | ||||||||
XY20 | 20 | 1.5 | 41 | 39 | 120 | 0.36 | 47 | M6 | 尼龙 | --- |
XY25 | 25 | 1.5 | 41 | 39 | 120 | 0.38 | 45 | M6 | 尼龙 | --- |
XY50 | 50 | 1.5 | 56 | 53 | 160 | 0.93 | 135 | M6 | 尼龙 | --- |
XY100 | 100 | 1.5 | 81 | 48 | 183 | 1.50 | 270 | M8 | 尼龙 | --- |
XY150 | 150 | 1.5 | 80 | 51 | 237 | 2.10 | 270 | M14 | 尼龙 | --- |
XY230* | 230 | 1.5 | 91.5 | 64 | 64 | 3.70 | 625 | M10 | 尼龙 | --- |
XY600* | 600 | 1.5 | 121 | 103 | 103 | 10.5 | 1450 | M14 | 尼龙 | --- |
XY800* | 800 | 1.5 | 116 | 98.2 | 98.2 | 12.8 | 1625 | M10 | 尼龙 | --- |
XY1100* | 1100 | 1.5 | 148 | 139 | 139 | 15.3 | 1900 | M10 | 尼龙 | --- |
XYG45-(3) | 45 | 1.5 | 57 | 53 | 160 | 0.95 | 125 | M10 | 尼龙 | --- |
XYG45-(3)G | 45 | 1.5 | 57 | 53 | 160 | 0.95 | 125 | M10 | 尼龙 | --- |
XYG55 | 55 | 1.5 | 57 | 53 | 175 | 0.98 | 135 | M10 | 尼龙 | --- |
XYG80 | 80 | 1.5 | 60 | 44 | 247 | 1.35 | 220 | M10 | 聚砜 | --- |
XYG85 | 85 | 1.5 | 81 | 48 | 183 | 1.45 | 200 | M8 | 聚砜 | --- |
XYG110 | 110 | 1.5 | 80 | 51 | 237 | 2.10 | 270 | M16 | 尼龙 | --- |
XYG110-（1） | 110 | 1.5 | 80 | 50.5 | 237 | 2.11 | 270 | M16 | 聚砜 | --- |
XYG200 | 200 | 1.5 | 91 | 62 | 314 | 3.70 | 500 | M14 | 尼龙 | --- |
2XY8 | 8 | 3.0 | 40 | 39 | 120 | 0.38 | 48 | M5 | 尼龙 | --- |
2XYG8 | 8 | 3.0 | 41 | 39 | 120 | 0.36 | 44 | M6 | 尼龙 | --- |
6XYG20 | 20 | 9.0 | 118 | 57 | 160 | 2.10 | 270 | M6 | 尼龙 | --- |
15XYG45-(3) | 45 | 22.5 | 434 | 131 | 224 | 17.9 | 1875 | M10 | 不锈钢 | --- |
15XYG45-(3)A | 45 | 22.5 | 512 | 131 | 218 | 18.3 | 1875 | M10 | 不锈钢 | --- |
15XYG45-(3)G | 45 | 22.5 | 434 | 131 | 227 | 17.9 | 1875 | M10 | 不锈钢 | --- |
15XYG55 | 55 | 22.5 | 512 | 131 | 218 | 20.0 | 2025 | M10 | 不锈钢 | --- |
2XYG80 | 80 | 3.0 | 78 | 70 | 245 | 3.07 | 440 | M8/M14 | 聚砜 | --- |
